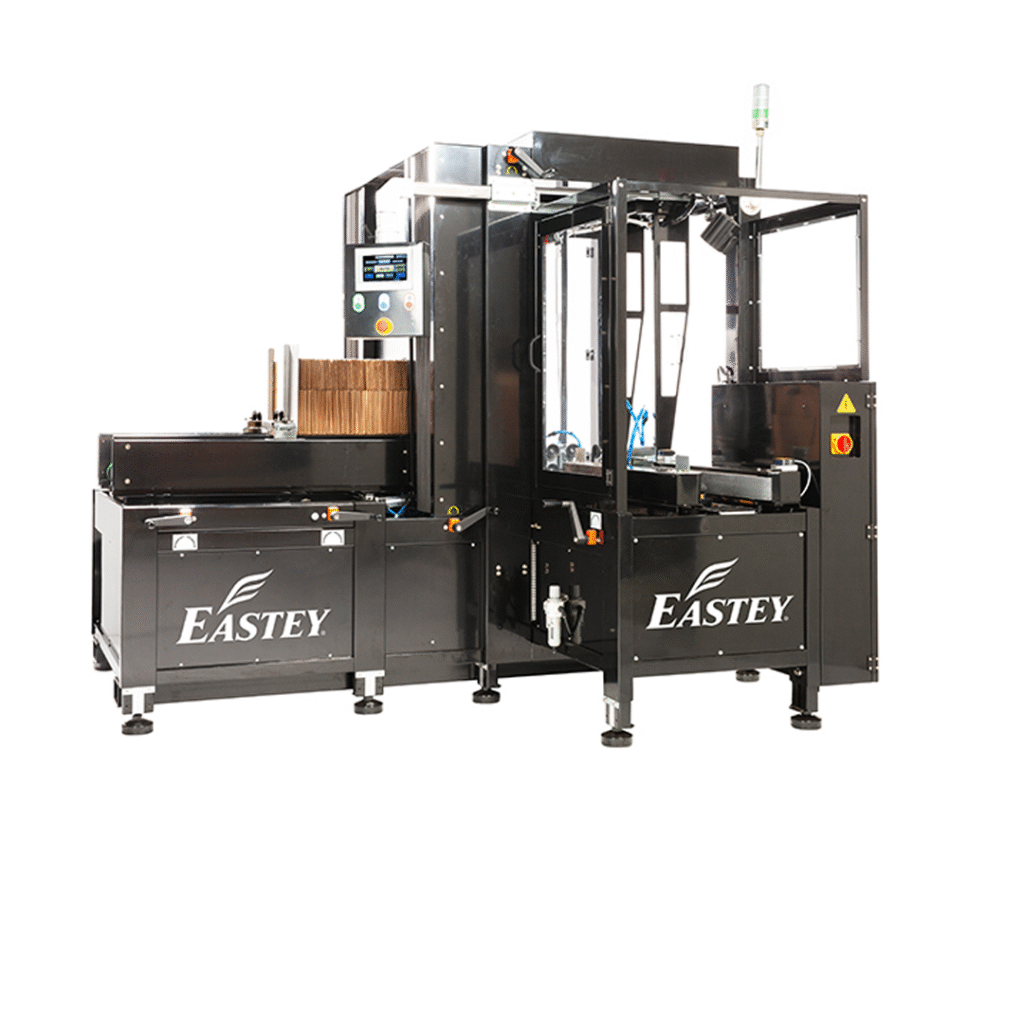

ERX-15 Automatic Case Erector

High-Speed, Reliable, and Cost-Efficient Case Forming

The ERX-15 Automatic Case Erector is engineered for packaging efficiency, delivering up to 15 cases per minute while reducing manual labor and downtime. Designed for corrugated case erecting, bottom sealing, and automated case forming, the ERX-15 ensures consistent performance and durability in demanding end-of-line packaging operations.

Features and Benefits

• Automatic case erecting & sealing – eliminates slow, manual box forming

• Up to 15 cases per minute – ideal for high-volume production lines

• Large capacity hopper – holds up to 200 RSC corrugated cases

• Quick tool-free changeover – adjust case sizes in minutes with hand-tighten knobs

• Compact footprint – integrates easily into existing case packing automation lines

• Durable steel frame – industrial-strength build with powder-coated finish


Simple & Reliable Operation

The ERX-15 carton erector enables a single operator to:

1. Load up to 200 blank corrugated cases into the magazine hopper.

2. Activate run or jog mode for automatic feeding.

3. Allow vacuum-powered suction cups to square cases with precision.

4. Utilize flap folding bars to close minor and major bottom flaps.

5. Seal the bottom flaps securely with Elmark’s proven EX tape head system.


This streamlined process minimizes operator training, increases production uptime, and provides a cost-effective case forming solution for any packaging line.

Specifications

• Accommodating a wide range of case dimensions:
  • Length: up to 19.5”

  • Height: up to 19.5”

  • Width: up to 15.5”

• Dual 1/4 HP side drive motors for consistent throughput

• Eight double-vacuum suction cups for precise case opening

• Heavy-duty belts for reliable case transition

• Powder-coated steel frame for long-lasting performance

• Safety features including interlock guarding and E-stop functions

Applications

• E-commerce
• Food packaging
• Consumer goods
• Industrial applications.

Why Choose the ERX-15 Automatic Case Erector?

Investing in the ERX-15 Automatic Case Erector eliminates costly manual box forming, reduces labor expenses, and boosts productivity. By automating case erecting and sealing, companies can reallocate workers to more valuable tasks and achieve faster order fulfillment.

• Lower labor costs

• Increased throughput

• Reduced downtime
• Consistent, professional-quality case sealing
