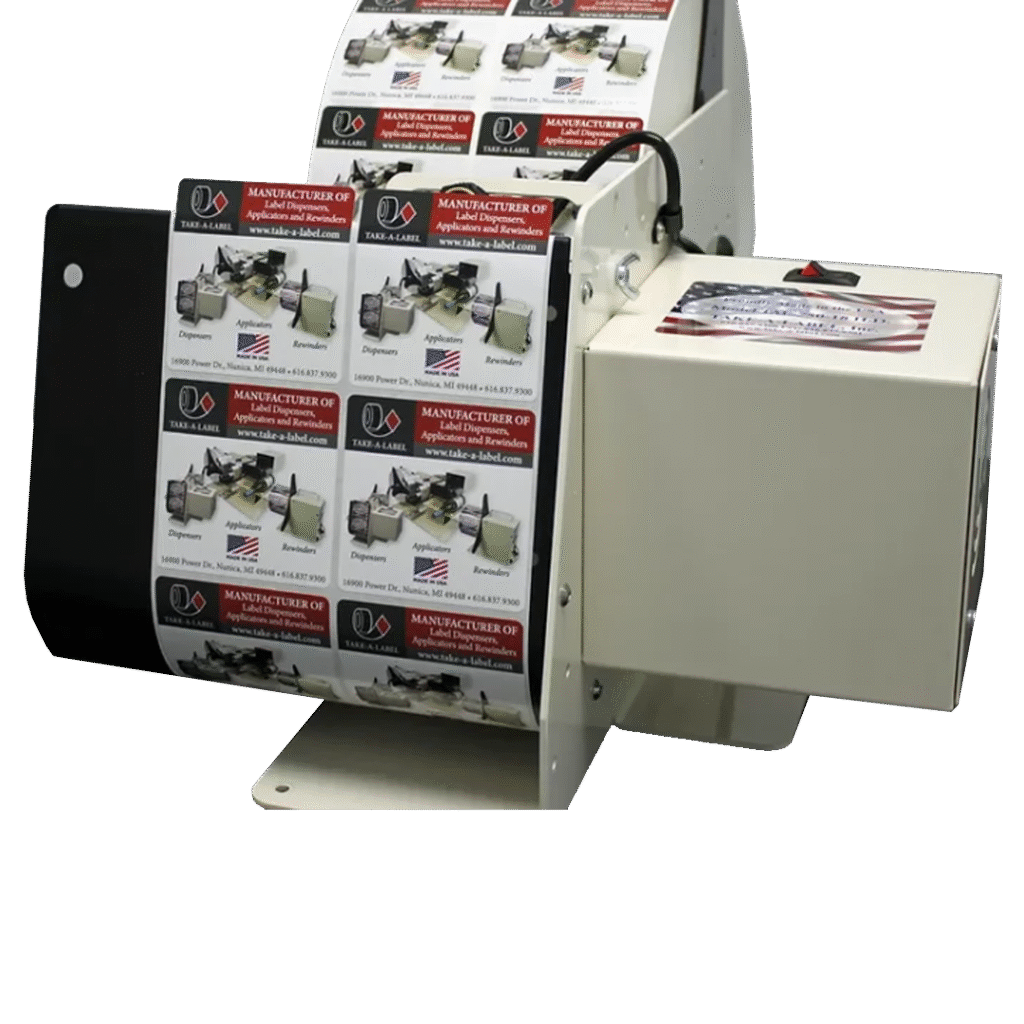

TAL-750HD

Model TAL-750HD provides the power and web capacity to handle the larger labels. This industrial grade dispenser is at home in the most demanding applications. Dispensing single or multiple labels from a common web. The TAL-750HD also features a standard photo cell label sensor for increased reliability, and the Heavy Duty Unwind system which allows for quicker changing of rolls of labels as well as added unwind tension for those labels that are extra difficult to dispense.

Standard Features:
• Full Scrap Rewind with Quick Start/Removal Feature
• Label Roll Diameter up to 12”
• Durable All Steel Frame with Powder Coat Finish
• Heavy Duty Motor with Built In Overload Protection
• Dispenses Die-cut or Butt-cut Labels
• Dispenses Multiple Labels on a Common Web
• Photo Cell Label Sensor

Specifications:
• Shipping Weight: 30 Lbs.
• Electrical Requirements: 110 VAC and 230 VAC
• Min. and Max. Liner Width: 3/8” to 7.5”
• Maximum Label Size: 7.5” x 25”
• Maximum Roll Diameter: 12”
• Core Size: 3” Diameter
• Unit Dimensions: W 19” x H 12” x L 20”
• Optional High Speed Motor with speeds up to 9” per second
